Rack Zinc Plating of a Steel Pump Flange for a Local City Project

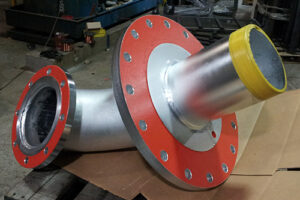

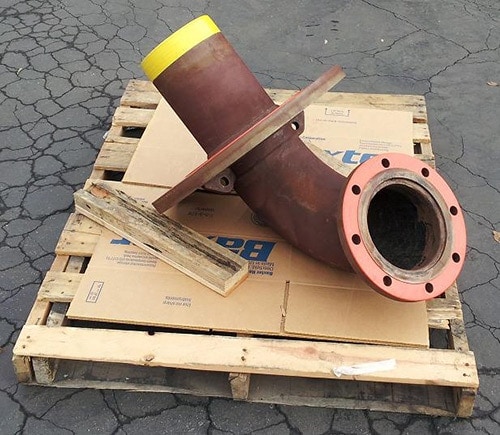

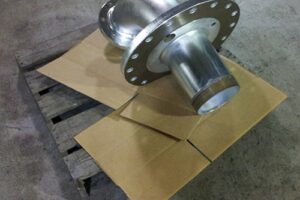

A local customer commissioned for a local city project contacted Commercial Electro Plating to perform zinc plating on the steel pump flange as highlighted here. The treatment would extend part life and protect from premature rusting. This 4′ x 3′ unit is large for typical zinc plating operations, but posed no problems for our company. The proper cleansing and prep work was performed, and parts not requiring treatment were masked for protection. The part was plated on our rack line where a 0.001″ – 0.002″ tolerance was maintained throughout. The specifications called for a type 5 process, administering a clear chromate finish for enhanced appearance and protection.

Two units were plated and delivered to the client in Fresno, California after a turnaround time of 2-3 days. Dimensional and visual inspections were administered to assure quality. We are able to plate to both ASTM and Military standards, offering different finishes and thicknesses as customers require. For more information about this rack zinc plating project, or our other available plating services, please see the table below or contact us directly.

Highlights of this Rack Zinc Plated Project

Capabilities Applied/Processes

Rack Zinc Plating

Overall Part Dimensions

Length: 4 feet
Height: 3 feet

Tightest Tolerances


Material Coated


Material Finish

Clear Zinc

In-Process Testing/Inspection Performed

Dimensional Inspection, Visual Inspection, Bath Analytical Testing

Industry for Use




Delivery/Turnaround Time

2 – 3 days

Delivery Location

Fresno, California

Standards Met

Customer Specifications
ASTM B633-07 Type 5

Product Name

Pump Flange
